Mastercraft

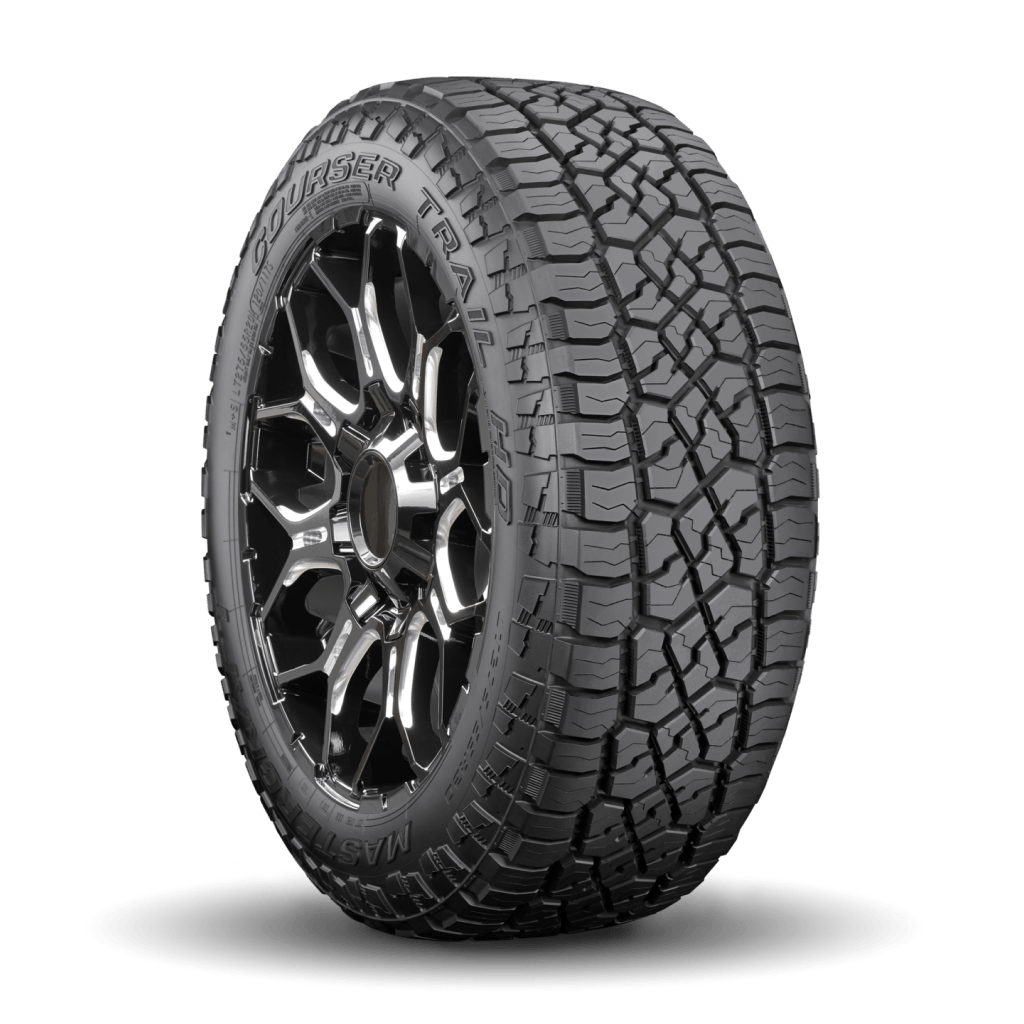

Courser Trail HD™
With a deeper, thicker rubber on the tread and sidewall, the Courser® Trail HD™ has an aggressive appearance that matches its tough, durable performance. Combined with reliable wet and winter performance, this tire lives up to your expectations both on the road and the trail.
Does this tire fit your vehicle?
Enter your vehicle or tire size information first to see if this tire fits. Then you’ll be able to take a look at relevant, detailed specs.
Tire Description
Tread wears evenly throughout life of the tire.
Cut resistant on gravel.
Stone ejection features.
Reliable wet performance.
Tire Features
The tire’s ability to grip the road in dry conditions.
The measure of how quiet a tire is while driving.
The tire’s ability to have grip on unpaved surfaces such as dirt, mud, sand, rock or gravel.
The tire’s ability to grip the road in wet conditions.
How the tire is able to respond to driving such as accelerating, braking, steering and turning.
The wear rate of the tire.
Warranties & Guarantees
2023 Commercial Replacement Tire Guide, Limited Warranty & Registration Booklet For Mastercraft® Tires
Full Specs
- Tire Size 285/70R17
- Static Loaded Radius 0 in/ 0 mm
- Load Range E
- Tread Depth 17 / 13 mm
- Revs 633 mile/ 393 km
- Max Speed 112 mph/ 70 kmh
- Tire Weight 55.8 lbs/ 25.3 kgs
- Approved Rim Width 7.5-9.0 in
- Single Max Load 3195 lbs/ 1449.2 kgs
- Overall Diameter 0 in/ 0 mm
- Single Inflation Pressure 80 psi/ 551 kpa
- Overall Width 11.7 in/ 297 mm
- Dual Max Load 2910 lbs/ 1320 kgs
- Overall Width Loaded 11.7 in/ 297 mm
- Dual Inflation Pressure 80 psi/ 551 kpa
